$\alpha$–La (A3') Structure: A_hP4_194_ac
| Prototype | : | $\alpha$–La |
| AFLOW prototype label | : | A_hP4_194_ac |
| Strukturbericht designation | : | $A3'$ |
| Pearson symbol | : | hP4 |
| Space group number | : | 194 |
| Space group symbol | : | $\mbox{P6}_{3}\mbox{/mmc}$ |
| AFLOW prototype command | : | aflow --proto=A_hP4_194_ac --params=$a,c/a$ |
Other elements with this structure
- Pr, Nd, Pm, Ce, Am, Cm, Bk, Cf.

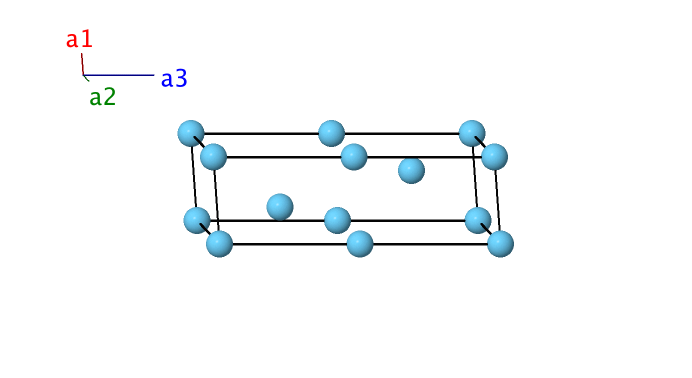

Hexagonal primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & \frac12 \, a \, \mathbf{\hat{x}} - \frac{\sqrt3}2 \, a \, \mathbf{\hat{y}} \\
\mathbf{a}_2 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac{\sqrt3}2 \, a \, \mathbf{\hat{y}} \\
\mathbf{a}_3 & = & c \, \mathbf{\hat{z}}\\
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1}& = &0 \, \mathbf{a}_{1} + 0 \, \mathbf{a}_{2} + 0 \, \mathbf{a}_{3} & = &0 \mathbf{\hat{x}} + 0 \mathbf{\hat{y}} + 0 \mathbf{\hat{z}} & \left(2a\right) & \mbox{La I} \\ \mathbf{B}_{2}& = &\frac12 \, \mathbf{a}_{3}& = &\frac12 \, c \, \mathbf{\hat{z}}& \left(2a\right) & \mbox{La I} \\ \mathbf{B}_{3}& = &\frac13 \, \mathbf{a}_{1}+ \frac23 \, \mathbf{a}_{2}+ \frac14 \, \mathbf{a}_{3}& = &\frac12 \, a \, \mathbf{\hat{x}}+ \frac{1}{2\sqrt{3}} \, a \, \mathbf{\hat{y}}+ \frac14 \, c \, \mathbf{\hat{z}}& \left(2c\right) & \mbox{La II} \\ \mathbf{B}_{4}& = &\frac23 \, \mathbf{a}_{1}+ \frac13 \, \mathbf{a}_{2}+ \frac34 \, \mathbf{a}_{3}& = &\frac12 \, a \, \mathbf{\hat{x}}- \frac{1}{2\sqrt{3}} \, a \, \mathbf{\hat{y}}+ \frac34 \, c \, \mathbf{\hat{z}}& \left(2c\right) & \mbox{La II} \\ \end{array} \]References
- F. H. Spedding, J. J. Hanak, and A. H. Daane, High temperature allotropy and thermal expansion of the rare–earth metals, J. Less–Common Met. 3, 110–124 (1961), doi:10.1016/0022-5088(61)90003-0.
Found in
- J. Donohue, The Structure of the Elements (Robert E. Krieger Publishing Company, Malabar, Florida, 1982)., pp. 83-86.
