Buckled Graphite Structure: A_hP4_186_ab
| Prototype | : | C |
| AFLOW prototype label | : | A_hP4_186_ab |
| Strukturbericht designation | : | None |
| Pearson symbol | : | hP4 |
| Space group number | : | 186 |
| Space group symbol | : | $\mbox{P6}_{3}\mbox{mc}$ |
| AFLOW prototype command | : | aflow --proto=A_hP4_186_ab --params=$a,c/a,z_{1},z_{2}$ |
- According to (Wyckoff, 1963), hexagonal graphite may be either flat, space group P63/mmc (#194) or buckled, space group P63mc (#186).
If it is buckled, the buckling parameter is small, less than 1/20 of the ‘c’ parameter of the hexagonal unit cell.

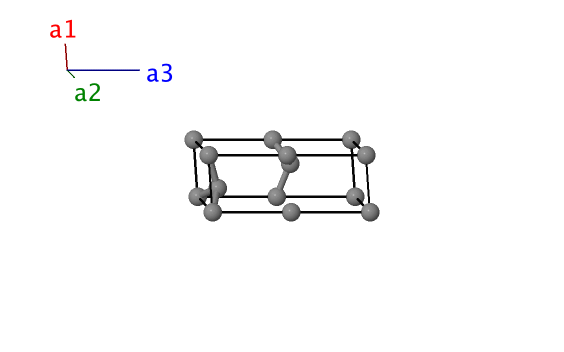

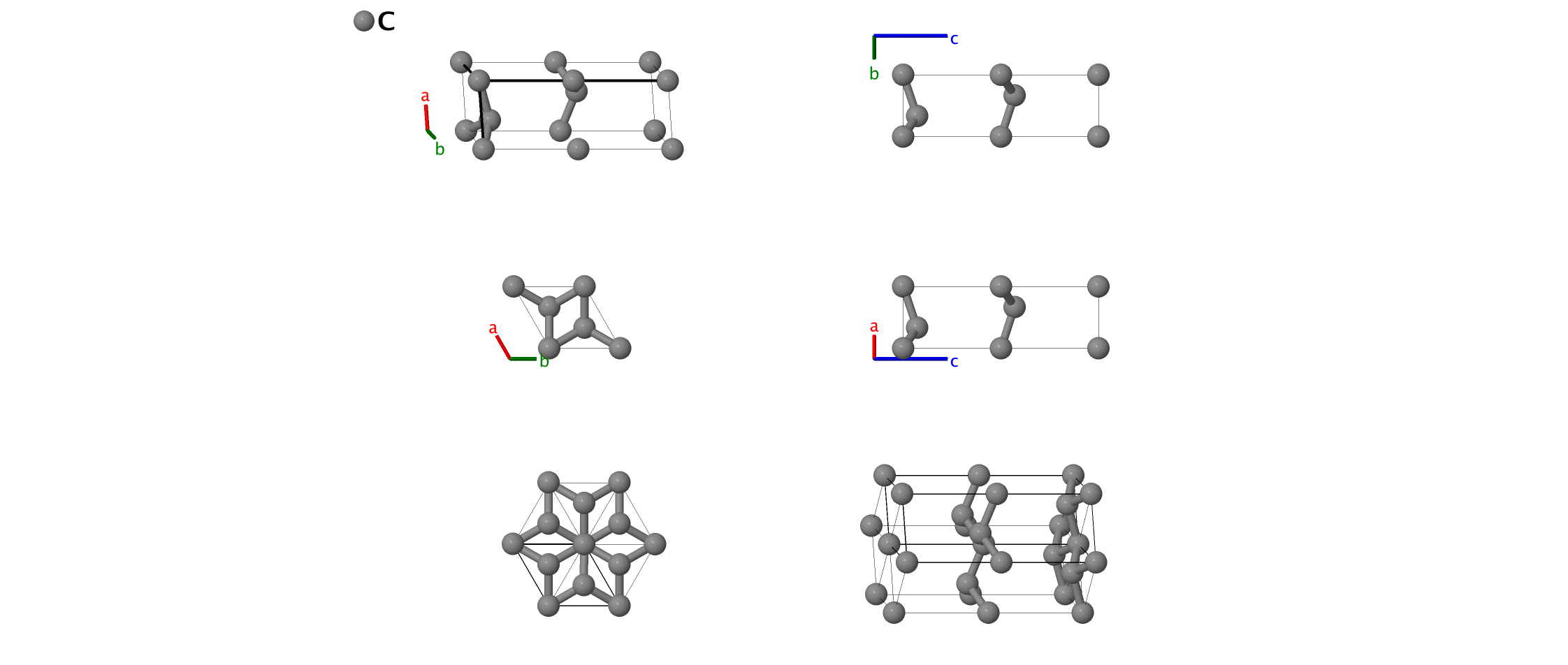

We will assign the A9 Strukturbericht designation to the unbuckled structure. Experimentally, a rhombohedral (R3m) graphite structure is also observed. In the pictures above we give $z_{2}$ the exaggerated value of $0.1$ When $z_{2} = 0$, this structure is equivalent to unbuckled (A9) hexagonal graphite.
Hexagonal primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & \frac12 \, a \, \mathbf{\hat{x}} - \frac{\sqrt{3}}{2} \, a \, \mathbf{\hat{y}} \\
\mathbf{a}_2 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2} \, a \, \mathbf{\hat{y}} \\
\mathbf{a}_3 & = & c \, \mathbf{\hat{z}}\\
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1}& = &z_{1} \, \mathbf{a}_{3}& = &z_{1} \, c \, \mathbf{\hat{z}}& \left(2a\right) & \mbox{C I} \\ \mathbf{B}_{2}& = &\left(\frac12 + z_{1}\right) \, \mathbf{a}_{3}& = &\left(\frac12 + z_{1}\right) \, c \, \mathbf{\hat{z}}& \left(2a\right) & \mbox{C I} \\ \mathbf{B}_{3}& = &\frac13 \, \mathbf{a}_{1}+ \frac23 \, \mathbf{a}_{2}+ z_{2} \, \mathbf{a}_{3}& = &\frac12 \, a \, \mathbf{\hat{x}}+ \frac1{2\sqrt3} \, a \, \mathbf{\hat{y}}+ z_{2} \, c \, \mathbf{\hat{z}}& \left(2b\right) & \mbox{C II} \\ \mathbf{B}_{4}& = &\frac23 \, \mathbf{a}_{1}+ \frac13 \, \mathbf{a}_{2}+ \left(\frac12 + z_{2}\right) \, \mathbf{a}_{3}& = &\frac12 \, a \, \mathbf{\hat{x}}- \frac1{2\sqrt3} \, a \, \mathbf{\hat{y}}+ \left(\frac12 + z_{2}\right) \, c \, \mathbf{\hat{z}}& \left(2b\right) & \mbox{C II} \\ \end{array} \]References
- A. W. Hull, A New Method of X–Ray Crystal Analysis, Phys. Rev. 10, 661–696 (1917), doi:10.1103/PhysRev.10.661.
Found in
- R. W. G. Wyckoff, Crystal Structures Vol. 1 (Wiley, 1963), 2nd edn., pp. 254.
