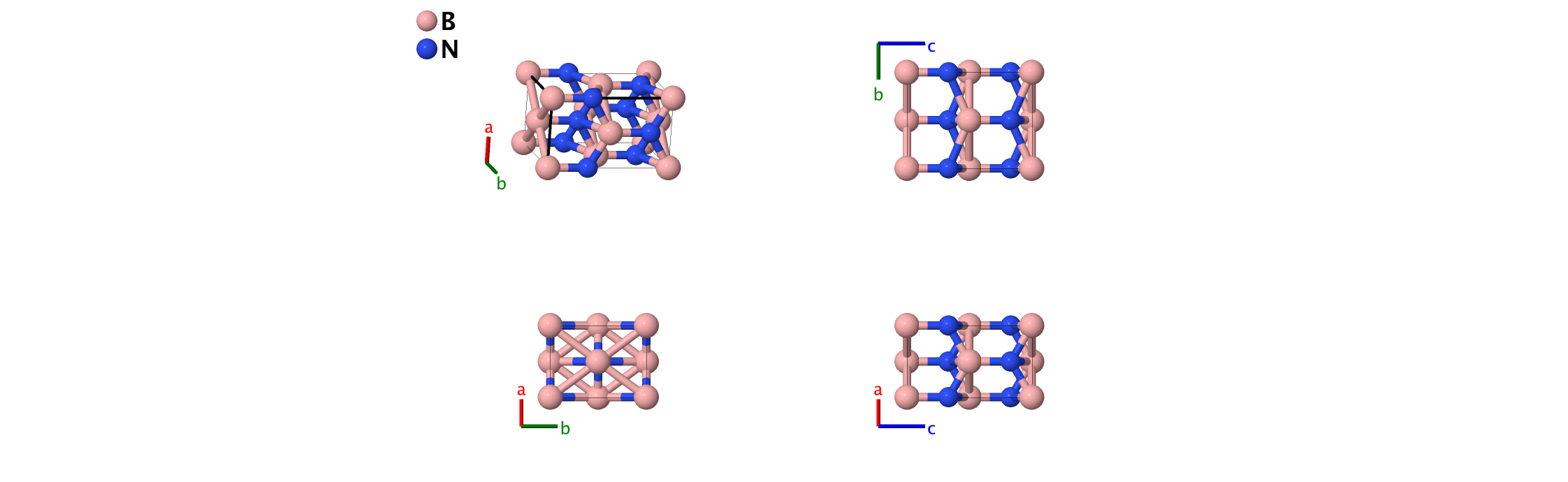

BN (High–pressure, high–temperature) Structure: AB_oF8_42_a_a
| Prototype | : | BN |
| AFLOW prototype label | : | AB_oF8_42_a_a |
| Strukturbericht designation | : | None |
| Pearson symbol | : | oF8 |
| Space group number | : | 42 |
| Space group symbol | : | $Fmm2$ |
| AFLOW prototype command | : | aflow --proto=AB_oF8_42_a_a --params=$a,b/a,c/a,z_{1},z_{2}$ |

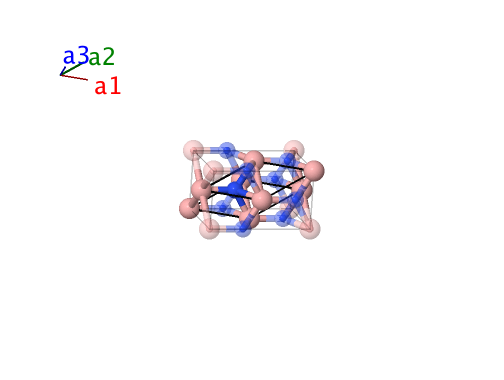

Face-centered Orthorhombic primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & \frac12 \, b \, \mathbf{\hat{y}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_2 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_3 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, b \, \mathbf{\hat{y}} \\
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1} & = & z_{1} \, \mathbf{a}_{1} + z_{1} \, \mathbf{a}_{2}-z_{1} \, \mathbf{a}_{3} & = & z_{1}c \, \mathbf{\hat{z}} & \left(4a\right) & \mbox{B} \\ \mathbf{B}_{2} & = & z_{2} \, \mathbf{a}_{1} + z_{2} \, \mathbf{a}_{2}-z_{2} \, \mathbf{a}_{3} & = & z_{2}c \, \mathbf{\hat{z}} & \left(4a\right) & \mbox{N} \\ \end{array} \]References
- A. V. Kurdyumov and G. S. Olejnik, On metastable structures of graphite–like boron nitride, Kristallografiya 29, 792–793 (1984).
Found in
- P. Villars and K. Cenzual, Pearson's Crystal Data – Crystal Structure Database for Inorganic Compounds, ASM International (2013).
