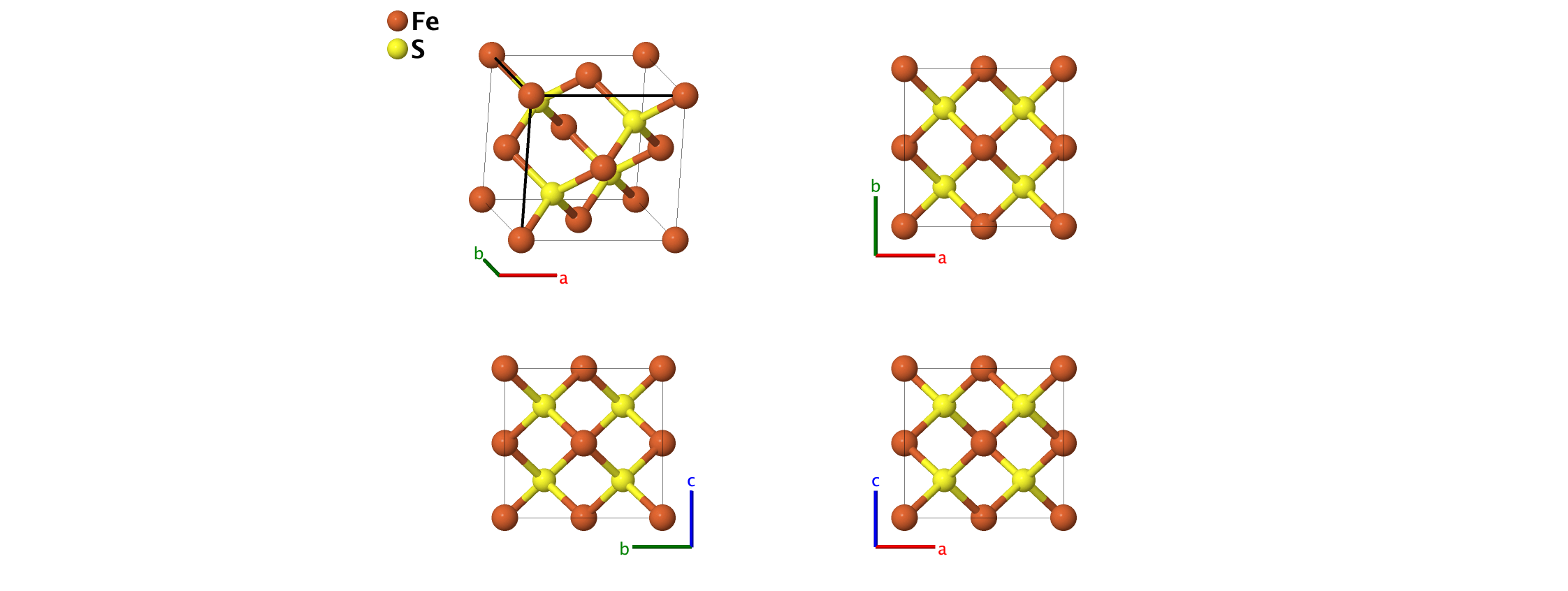

FeS (Low–temperature) Structure: AB_oF8_22_a_c
| Prototype | : | FeS |
| AFLOW prototype label | : | AB_oF8_22_a_c |
| Strukturbericht designation | : | None |
| Pearson symbol | : | oF8 |
| Space group number | : | 22 |
| Space group symbol | : | $F222$ |
| AFLOW prototype command | : | aflow --proto=AB_oF8_22_a_c --params=$a,b/a,c/a$ |

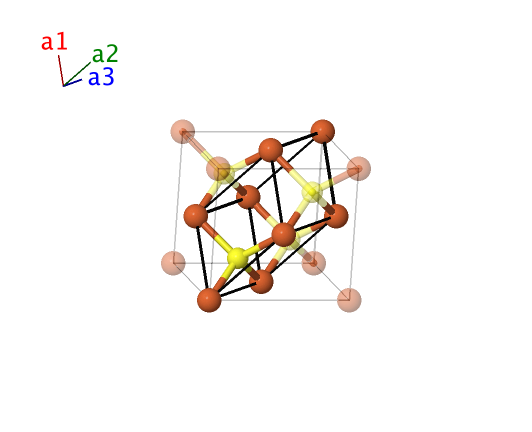

Face-centered Orthorhombic primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & \frac12 \, b \, \mathbf{\hat{y}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_2 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_3 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, b \, \mathbf{\hat{y}} \\
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1} & = & 0 \, \mathbf{a}_{1} + 0 \, \mathbf{a}_{2} + 0 \, \mathbf{a}_{3} & = & 0 \, \mathbf{\hat{x}} + 0 \, \mathbf{\hat{y}} + 0 \, \mathbf{\hat{z}} & \left(4a\right) & \mbox{Fe} \\ \mathbf{B}_{2} & = & \frac{1}{4} \, \mathbf{a}_{1} + \frac{1}{4} \, \mathbf{a}_{2} + \frac{1}{4} \, \mathbf{a}_{3} & = & \frac{1}{4}a \, \mathbf{\hat{x}} + \frac{1}{4}b \, \mathbf{\hat{y}} + \frac{1}{4}c \, \mathbf{\hat{z}} & \left(4c\right) & \mbox{S} \\ \end{array} \]References
- M. Wintenberger, B. Srour, C. Meyer, F. Hartmannboutron, Y. Gros, and J. L. Buevoz, First order transitions and magnetic–structure of zincblende–type iron sulfide, Acta Crystallogr. Sect. A 34, S318–S318 (1978).
Found in
- P. Villars and K. Cenzual, Pearson's Crystal Data – Crystal Structure Database for Inorganic Compounds, ASM International (2013).
