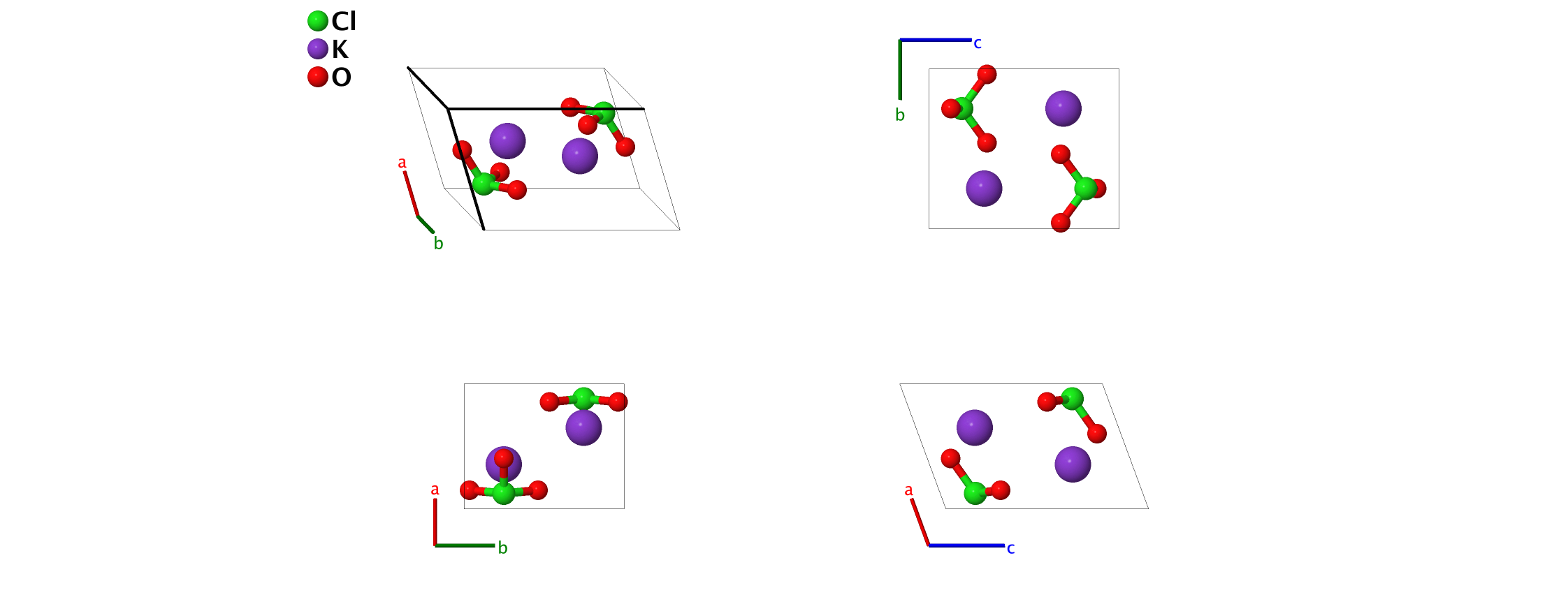

KClO3 (G06) Structure: ABC3_mP10_11_e_e_ef
| Prototype | : | KClO3 |
| AFLOW prototype label | : | ABC3_mP10_11_e_e_ef |
| Strukturbericht designation | : | $G0_{6}$ |
| Pearson symbol | : | mP10 |
| Space group number | : | 11 |
| Space group symbol | : | $\mbox{P2}_{1}\mbox{/m}$ |
| AFLOW prototype command | : | aflow --proto=ABC3_mP10_11_e_e_ef --params=$a,b/a,c/a,\beta,x_{1},z_{1},x_{2},z_{2},x_{3},z_{3},x_{4},y_{4},z_{4}$ |

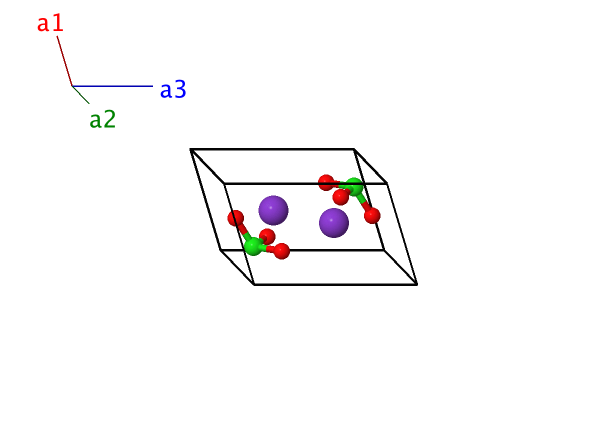

Simple Monoclinic primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & a \, \mathbf{\hat{x}} \\
\mathbf{a}_2 & = & b \, \mathbf{\hat{y}} \\
\mathbf{a}_3 & = & c \cos\beta \, \mathbf{\hat{x}} + c \sin\beta \, \mathbf{\hat{z}}
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1} & =& x_{1} \, \mathbf{a}_{1} + \frac14 \, \mathbf{a}_{2} + z_{1} \, \mathbf{a}_{3}& =& \left(x_{1} \, a + z_{1} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \frac14 \, b \, \mathbf{\hat{y}}+ z_{1} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(2e\right) & \mbox{Cl} \\ \mathbf{B}_{2} & =& - x_{1} \, \mathbf{a}_{1} + \frac34 \, \mathbf{a}_{2} - z_{1} \, \mathbf{a}_{3}& =& - \left(x_{1} \, a + z_{1} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \frac34 \, b \, \mathbf{\hat{y}}- z_{1} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(2e\right) & \mbox{Cl} \\ \mathbf{B}_{3} & =& x_{2} \, \mathbf{a}_{1} + \frac14 \, \mathbf{a}_{2} + z_{2} \, \mathbf{a}_{3}& =& \left(x_{2} \, a + z_{2} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \frac14 \, b \, \mathbf{\hat{y}}+ z_{2} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(2e\right) & \mbox{K} \\ \mathbf{B}_{4} & =& - x_{2} \, \mathbf{a}_{1} + \frac34 \, \mathbf{a}_{2} - z_{2} \, \mathbf{a}_{3}& =& - \left(x_{2} \, a + z_{2} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \frac34 \, b \, \mathbf{\hat{y}}- z_{2} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(2e\right) & \mbox{K} \\ \mathbf{B}_{5} & =& x_{3} \, \mathbf{a}_{1} + \frac14 \, \mathbf{a}_{2} + z_{3} \, \mathbf{a}_{3}& =& \left(x_{3} \, a + z_{3} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \frac14 \, b \, \mathbf{\hat{y}}+ z_{3} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(2e\right) & \mbox{O I} \\ \mathbf{B}_{6} & =& - x_{3} \, \mathbf{a}_{1} + \frac34 \, \mathbf{a}_{2} - z_{3} \, \mathbf{a}_{3}& =& - \left(x_{3} \, a + z_{3} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \frac34 \, b \, \mathbf{\hat{y}}- z_{3} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(2e\right) & \mbox{O I} \\ \mathbf{B}_{7} & =& x_{4} \, \mathbf{a}_{1} + y_{4} \, \mathbf{a}_{2} + z_{4} \, \mathbf{a}_{3}& =& \left(x_{4} \, a + z_{4} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ y_{4} \, b \, \mathbf{\hat{y}}+ z_{4} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(4f\right) & \mbox{O II} \\ \mathbf{B}_{8} & =& - x_{4} \, \mathbf{a}_{1} + \left(\frac12 + y_{4}\right) \, \mathbf{a}_{2} - z_{4} \, \mathbf{a}_{3}& =& - \left(x_{4} \, a + z_{4} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \left(\frac12 + y_{4}\right) \, b \, \mathbf{\hat{y}}- z_{4} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(4f\right) & \mbox{O II} \\ \mathbf{B}_{9} & =& - x_{4} \, \mathbf{a}_{1} - y_{4} \, \mathbf{a}_{2} - z_{4} \, \mathbf{a}_{3}& =& - \left(x_{4} \, a + z_{4} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}- y_{4} \, b \, \mathbf{\hat{y}}- z_{4} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(4f\right) & \mbox{O II} \\ \mathbf{B}_{10} & =& x_{4} \, \mathbf{a}_{1} + \left(\frac12 - y_{4}\right) \, \mathbf{a}_{2} + z_{4} \, \mathbf{a}_{3}& =& \left(x_{4} \, a + z_{4} \, c \, \cos\beta\right) \, \mathbf{\hat{x}}+ \left(\frac12 - y_{4}\right) \, b \, \mathbf{\hat{y}}+ z_{4} \, c \, \sin\beta \, \mathbf{\hat{z}}& \left(4f\right) & \mbox{O II} \\ \end{array} \]References
- J. Danielsen, A. Hazell, and F. K. Larsen, The Structure of Potassium Chlorate at 77 and 298 K, Acta Crystallogr. Sect. B Struct. Sci. 37, 913–915 (1981), doi:10.1107/S0567740881004573.
