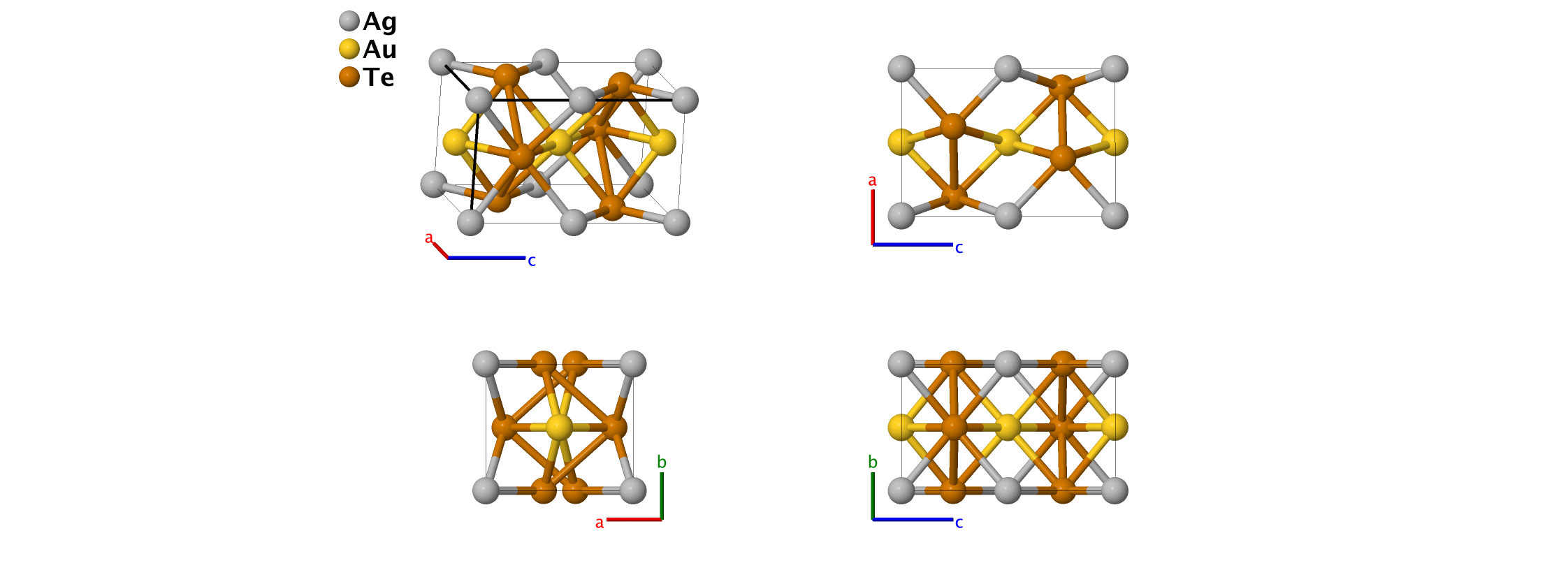

Muthmannite (AuAgTe2) Structure: ABC2_mP8_10_ac_eh_mn
| Prototype | : | AuAgTe2 |
| AFLOW prototype label | : | ABC2_mP8_10_ac_eh_mn |
| Strukturbericht designation | : | None |
| Pearson symbol | : | mP8 |
| Space group number | : | 10 |
| Space group symbol | : | $P2/m$ |
| AFLOW prototype command | : | aflow --proto=ABC2_mP8_10_ac_eh_mn --params=$a,b/a,c/a,\beta,x_{5},z_{5},x_{6},z_{6}$ |

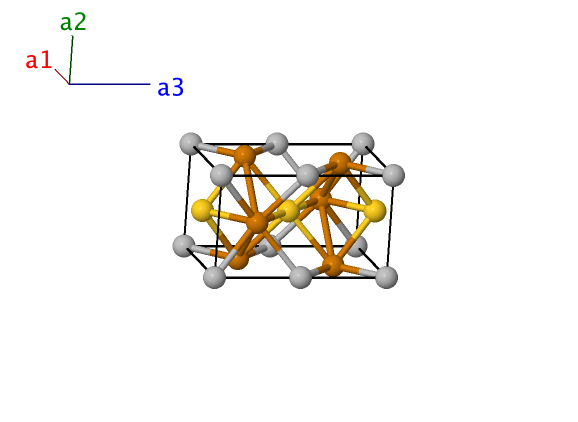

Simple Monoclinic primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & a \, \mathbf{\hat{x}} \\
\mathbf{a}_2 & = & b \, \mathbf{\hat{y}} \\
\mathbf{a}_3 & = & c \cos\beta \, \mathbf{\hat{x}} + c \sin\beta \, \mathbf{\hat{z}} \\
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1} & = & 0 \, \mathbf{a}_{1} + 0 \, \mathbf{a}_{2} + 0 \, \mathbf{a}_{3} & = & 0 \, \mathbf{\hat{x}} + 0 \, \mathbf{\hat{y}} + 0 \, \mathbf{\hat{z}} & \left(1a\right) & \mbox{Ag I} \\ \mathbf{B}_{2} & = & \frac{1}{2} \, \mathbf{a}_{3} & = & \frac{1}{2}c\cos\beta \, \mathbf{\hat{x}} + \frac{1}{2}c\sin\beta \, \mathbf{\hat{z}} & \left(1c\right) & \mbox{Ag II} \\ \mathbf{B}_{3} & = & \frac{1}{2} \, \mathbf{a}_{1} + \frac{1}{2} \, \mathbf{a}_{2} & = & \frac{1}{2}a \, \mathbf{\hat{x}} + \frac{1}{2}b \, \mathbf{\hat{y}} & \left(1e\right) & \mbox{Au I} \\ \mathbf{B}_{4} & = & \frac{1}{2} \, \mathbf{a}_{1} + \frac{1}{2} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & \frac{1}{2}\left(a+c\cos\beta\right) \, \mathbf{\hat{x}} + \frac{1}{2}b \, \mathbf{\hat{y}} + \frac{1}{2}c\sin\beta \, \mathbf{\hat{z}} & \left(1h\right) & \mbox{Au II} \\ \mathbf{B}_{5} & = & x_{5} \, \mathbf{a}_{1} + z_{5} \, \mathbf{a}_{3} & = & \left(x_{5}a+z_{5}c\cos\beta\right) \, \mathbf{\hat{x}} + z_{5}c\sin\beta \, \mathbf{\hat{z}} & \left(2m\right) & \mbox{Te I} \\ \mathbf{B}_{6} & = & -x_{5} \, \mathbf{a}_{1}-z_{5} \, \mathbf{a}_{3} & = & \left(-x_{5}a-z_{5}c\cos\beta\right) \, \mathbf{\hat{x}}-z_{5}c\sin\beta \, \mathbf{\hat{z}} & \left(2m\right) & \mbox{Te I} \\ \mathbf{B}_{7} & = & x_{6} \, \mathbf{a}_{1} + \frac{1}{2} \, \mathbf{a}_{2} + z_{6} \, \mathbf{a}_{3} & = & \left(x_{6}a+z_{6}c\cos\beta\right) \, \mathbf{\hat{x}} + \frac{1}{2}b \, \mathbf{\hat{y}} + z_{6}c\sin\beta \, \mathbf{\hat{z}} & \left(2n\right) & \mbox{Te II} \\ \mathbf{B}_{8} & = & -x_{6} \, \mathbf{a}_{1} + \frac{1}{2} \, \mathbf{a}_{2}-z_{6} \, \mathbf{a}_{3} & = & \left(-x_{6}a-z_{6}c\cos\beta\right) \, \mathbf{\hat{x}} + \frac{1}{2}b \, \mathbf{\hat{y}}-z_{6}c\sin\beta \, \mathbf{\hat{z}} & \left(2n\right) & \mbox{Te II} \\ \end{array} \]References
- L. Bindi, Commensurate–incommensurate phase transition in muthmannite, AuAgTe2: first evidence of a modulated structure at low temperature, Philos. Mag. Lett. 88, 533–541 (2008), doi:10.1080/09500830802311072.
Found in
- P. Villars and K. Cenzual, Pearson's Crystal Data – Crystal Structure Database for Inorganic Compounds, ASM International (2013).
