MoPt2 Structure: AB2_oI6_71_a_g
| Prototype | : | MoPt2 |
| AFLOW prototype label | : | AB2_oI6_71_a_g |
| Strukturbericht designation | : | None |
| Pearson symbol | : | oI6 |
| Space group number | : | 71 |
| Space group symbol | : | $\mbox{Immm}$ |
| AFLOW prototype command | : | aflow --proto=AB2_oI6_71_a_g --params=$a,b/a,c/a,y_{2}$ |

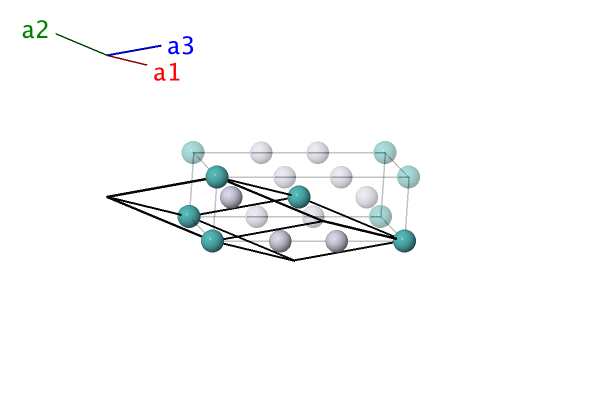

Body-centered Orthorhombic primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & - \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, b \, \mathbf{\hat{y}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_2 & = & ~ \frac12 \, a \, \mathbf{\hat{x}} - \frac12 \, b \, \mathbf{\hat{y}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_3 & = & ~ \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, b \, \mathbf{\hat{y}} - \frac12 \, c \, \mathbf{\hat{z}} \\
\end{array}
\]

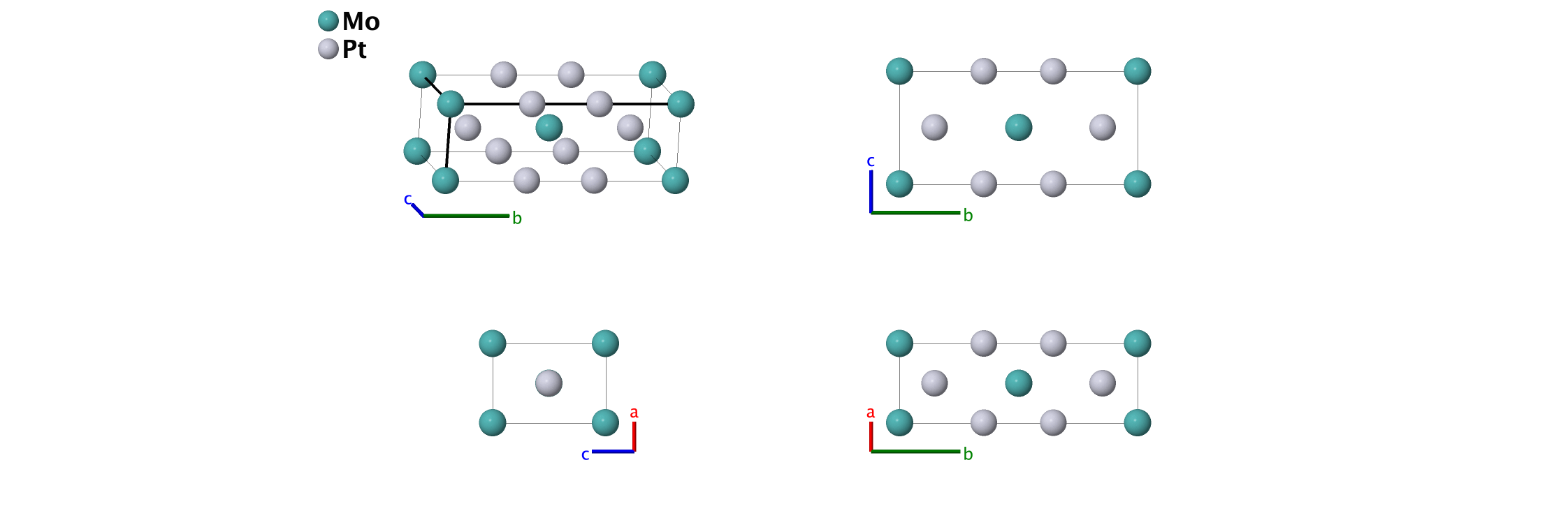

Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B_1} & = & 0 \, \mathbf{a}_{1} + 0 \, \mathbf{a}_{2} + 0 \, \mathbf{a}_{3} & = & 0 \mathbf{\hat{x}} + 0 \mathbf{\hat{y}} + 0 \mathbf{\hat{z}} & \left(2a\right) & \mbox{Mo} \\ \mathbf{B}_{2} & =& y_{2} \, \mathbf{a}_{1} + y_{2} \, \mathbf{a}_{3}& =& y_{2} \, b \, \mathbf{\hat{y}}& \left(4g\right) & \mbox{Pt} \\ \mathbf{B}_{3} & =& - y_{2} \, \mathbf{a}_{1} - y_{2} \, \mathbf{a}_{3}& =& - y_{2} \, b \, \mathbf{\hat{y}}& \left(4g\right) & \mbox{Pt} \\ \end{array} \]References
- K. Schubert, W. Burkhardt, P. Esslinger, E. Günzel, H. G. Meissner, W. Schütt, J. Wegst, and M. Wilkens, Einige strukturelle Ergebnisse an metallischen Phasen, Naturwissenschaften 43, 248–249 (1956), doi:10.1007/BF00617585.
Found in
- P. Villars, Material Phases Data System ((MPDS), CH–6354 Vitznau, Switzerland, 2014). Accessed through the Springer Materials site.
