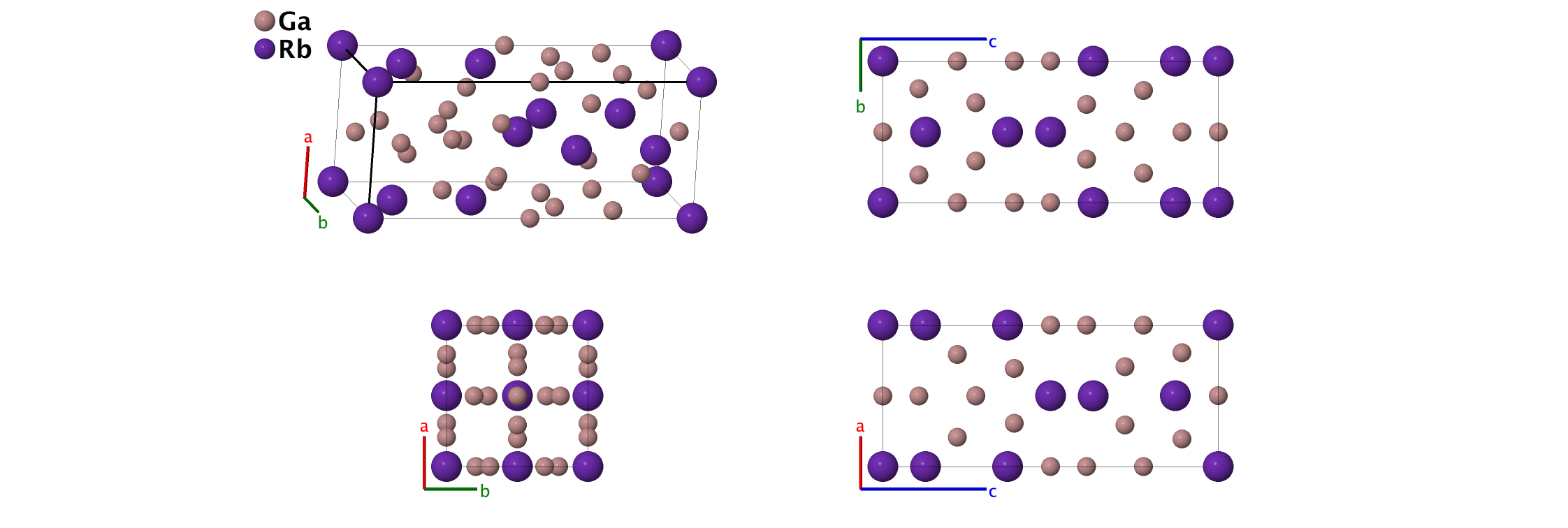

RbGa3 Structure: A3B_tI24_119_b2i_af
| Prototype | : | RbGa3 |
| AFLOW prototype label | : | A3B_tI24_119_b2i_af |
| Strukturbericht designation | : | None |
| Pearson symbol | : | tI24 |
| Space group number | : | 119 |
| Space group symbol | : | $I\bar{4}m2$ |
| AFLOW prototype command | : | aflow --proto=A3B_tI24_119_b2i_af --params=$a,c/a,z_{3},x_{4},z_{4},x_{5},z_{5}$ |
Other compounds with this structure
- CsGa3, KGa3

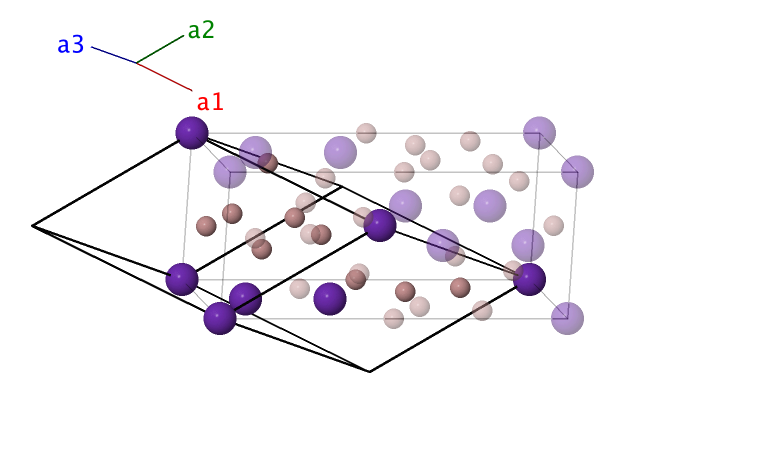

Body-centered Tetragonal primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & - \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, a \, \mathbf{\hat{y}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_2 & = & ~ \frac12 \, a \, \mathbf{\hat{x}} - \frac12 \, a \, \mathbf{\hat{y}} + \frac12 \, c \, \mathbf{\hat{z}} \\
\mathbf{a}_3 & = & ~ \frac12 \, a \, \mathbf{\hat{x}} + \frac12 \, a \, \mathbf{\hat{y}} - \frac12 \, c \, \mathbf{\hat{z}} \\
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1} & = & 0 \, \mathbf{a}_{1} + 0 \, \mathbf{a}_{2} + 0 \, \mathbf{a}_{3} & = & 0 \, \mathbf{\hat{x}} + 0 \, \mathbf{\hat{y}} + 0 \, \mathbf{\hat{z}} & \left(2a\right) & \mbox{Rb I} \\ \mathbf{B}_{2} & = & \frac{1}{2} \, \mathbf{a}_{1} + \frac{1}{2} \, \mathbf{a}_{2} & = & \frac{1}{2}c \, \mathbf{\hat{z}} & \left(2b\right) & \mbox{Ga I} \\ \mathbf{B}_{3} & = & \left(\frac{1}{2} +z_{3}\right) \, \mathbf{a}_{1} + z_{3} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & \frac{1}{2}a \, \mathbf{\hat{y}} + z_{3}c \, \mathbf{\hat{z}} & \left(4f\right) & \mbox{Rb II} \\ \mathbf{B}_{4} & = & -z_{3} \, \mathbf{a}_{1} + \left(\frac{1}{2} - z_{3}\right) \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & \frac{1}{2}a \, \mathbf{\hat{x}}-z_{3}c \, \mathbf{\hat{z}} & \left(4f\right) & \mbox{Rb II} \\ \mathbf{B}_{5} & = & z_{4} \, \mathbf{a}_{1} + \left(x_{4}+z_{4}\right) \, \mathbf{a}_{2} + x_{4} \, \mathbf{a}_{3} & = & x_{4}a \, \mathbf{\hat{x}} + z_{4}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga II} \\ \mathbf{B}_{6} & = & z_{4} \, \mathbf{a}_{1} + \left(-x_{4}+z_{4}\right) \, \mathbf{a}_{2}-x_{4} \, \mathbf{a}_{3} & = & -x_{4}a \, \mathbf{\hat{x}} + z_{4}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga II} \\ \mathbf{B}_{7} & = & \left(-x_{4}-z_{4}\right) \, \mathbf{a}_{1}-z_{4} \, \mathbf{a}_{2}-x_{4} \, \mathbf{a}_{3} & = & -x_{4}a \, \mathbf{\hat{y}}-z_{4}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga II} \\ \mathbf{B}_{8} & = & \left(x_{4}-z_{4}\right) \, \mathbf{a}_{1}-z_{4} \, \mathbf{a}_{2} + x_{4} \, \mathbf{a}_{3} & = & x_{4}a \, \mathbf{\hat{y}}-z_{4}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga II} \\ \mathbf{B}_{9} & = & z_{5} \, \mathbf{a}_{1} + \left(x_{5}+z_{5}\right) \, \mathbf{a}_{2} + x_{5} \, \mathbf{a}_{3} & = & x_{5}a \, \mathbf{\hat{x}} + z_{5}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga III} \\ \mathbf{B}_{10} & = & z_{5} \, \mathbf{a}_{1} + \left(-x_{5}+z_{5}\right) \, \mathbf{a}_{2}-x_{5} \, \mathbf{a}_{3} & = & -x_{5}a \, \mathbf{\hat{x}} + z_{5}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga III} \\ \mathbf{B}_{11} & = & \left(-x_{5}-z_{5}\right) \, \mathbf{a}_{1}-z_{5} \, \mathbf{a}_{2}-x_{5} \, \mathbf{a}_{3} & = & -x_{5}a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga III} \\ \mathbf{B}_{12} & = & \left(x_{5}-z_{5}\right) \, \mathbf{a}_{1}-z_{5} \, \mathbf{a}_{2} + x_{5} \, \mathbf{a}_{3} & = & x_{5}a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(8i\right) & \mbox{Ga III} \\ \end{array} \]References
- R. G. Ling and C. Belin, Preparation and Crystal Structure Determination of the New Intermetallic Compound RbGa3, Z. Anorg. Allg. Chem. 480, 181–185 (1981), doi:10.1002/zaac.19814800923.
Found in
- P. Villars and L. Calvert, Pearson's Handbook of Crystallographic Data for Intermetallic Phases (ASM International, Materials Park, OK, 1991), vol. III, chap. , p. 3545.
