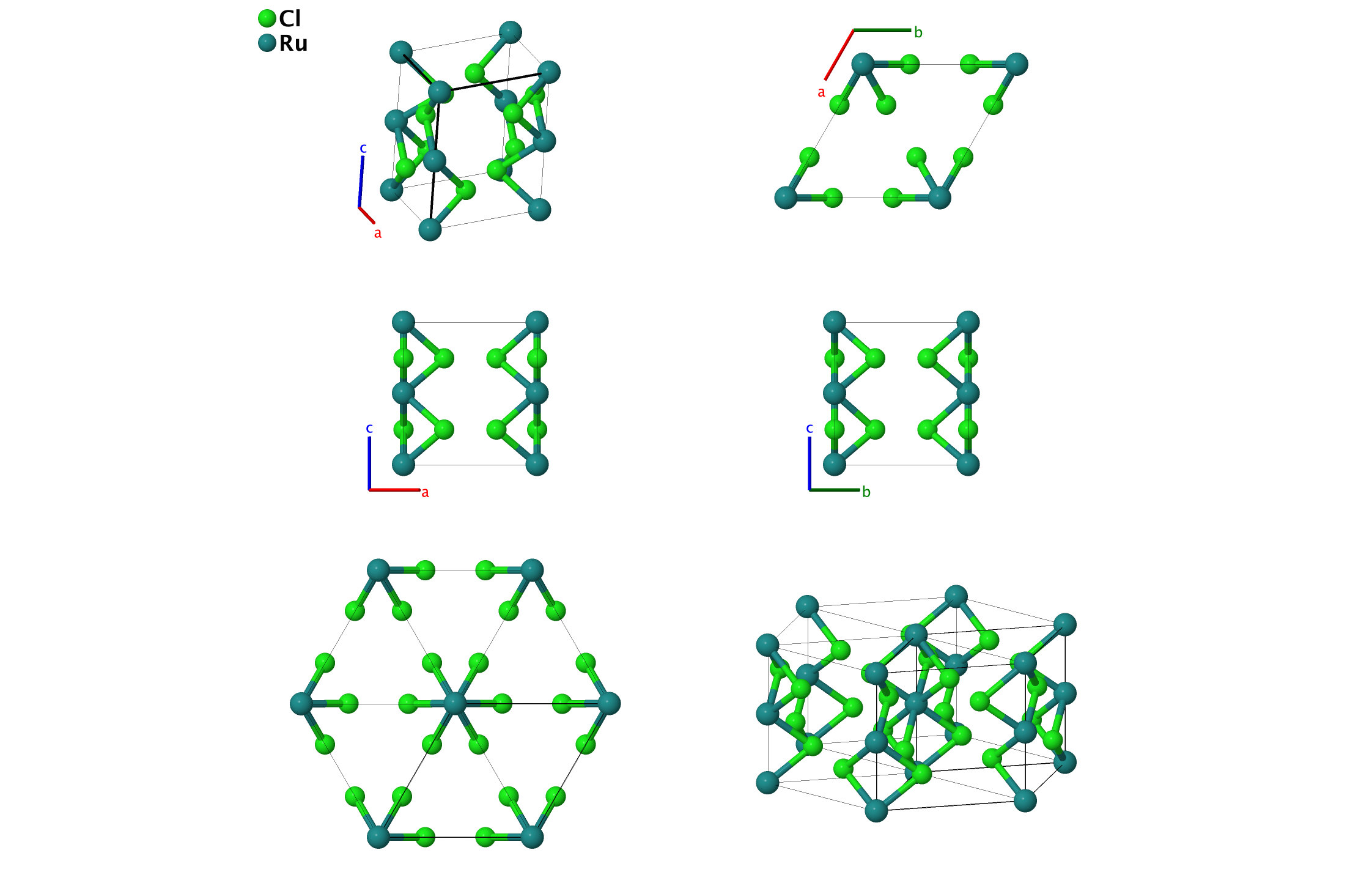

$\beta$–RuCl3 Structure: A3B_hP8_185_c_a
| Prototype | : | RuCl3 |
| AFLOW prototype label | : | A3B_hP8_185_c_a |
| Strukturbericht designation | : | None |
| Pearson symbol | : | hP8 |
| Space group number | : | 185 |
| Space group symbol | : | $P6_{3}cm$ |
| AFLOW prototype command | : | aflow --proto=A3B_hP8_185_c_a --params=$a,c/a,z_{1},x_{2},z_{2}$ |
- Pearson comments that space groups #158, #188, #193, could not be rejected, but this structure is consistent with space group #185. We also provide the structure with space group #158: β–RuCl3 (A3B_hP8_158_d_a) structure.

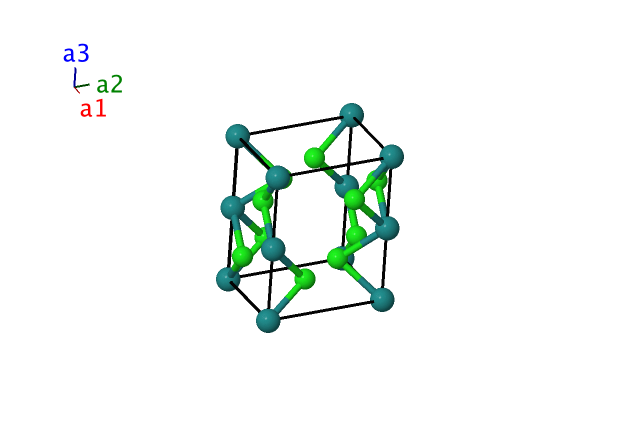

Hexagonal primitive vectors:
\[
\begin{array}{ccc}
\mathbf{a}_1 & = & \frac12 \, a \, \mathbf{\hat{x}} - \frac{\sqrt3}2 \, a \, \mathbf{\hat{y}} \\
\mathbf{a}_2 & = & \frac12 \, a \, \mathbf{\hat{x}} + \frac{\sqrt3}2 \, a \, \mathbf{\hat{y}} \\
\mathbf{a}_3 & = & c \, \mathbf{\hat{z}} \\
\end{array}
\]
Basis vectors:
\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1} & = & z_{1} \, \mathbf{a}_{3} & = & z_{1}c \, \mathbf{\hat{z}} & \left(2a\right) & \mbox{Ru} \\ \mathbf{B}_{2} & = & \left(\frac{1}{2} +z_{1}\right) \, \mathbf{a}_{3} & = & \left(\frac{1}{2} +z_{1}\right)c \, \mathbf{\hat{z}} & \left(2a\right) & \mbox{Ru} \\ \mathbf{B}_{3} & = & x_{2} \, \mathbf{a}_{1} + z_{2} \, \mathbf{a}_{3} & = & \frac{1}{2}x_{2}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} + z_{2}c \, \mathbf{\hat{z}} & \left(6c\right) & \mbox{Cl} \\ \mathbf{B}_{4} & = & x_{2} \, \mathbf{a}_{2} + z_{2} \, \mathbf{a}_{3} & = & \frac{1}{2}x_{2}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} + z_{2}c \, \mathbf{\hat{z}} & \left(6c\right) & \mbox{Cl} \\ \mathbf{B}_{5} & = & -x_{2} \, \mathbf{a}_{1}-x_{2} \, \mathbf{a}_{2} + z_{2} \, \mathbf{a}_{3} & = & -x_{2}a \, \mathbf{\hat{x}} + z_{2}c \, \mathbf{\hat{z}} & \left(6c\right) & \mbox{Cl} \\ \mathbf{B}_{6} & = & -x_{2} \, \mathbf{a}_{1} + \left(\frac{1}{2} +z_{2}\right) \, \mathbf{a}_{3} & = & -\frac{1}{2}x_{2}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} + \left(\frac{1}{2} +z_{2}\right)c \, \mathbf{\hat{z}} & \left(6c\right) & \mbox{Cl} \\ \mathbf{B}_{7} & = & -x_{2} \, \mathbf{a}_{2} + \left(\frac{1}{2} +z_{2}\right) \, \mathbf{a}_{3} & = & -\frac{1}{2}x_{2}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} + \left(\frac{1}{2} +z_{2}\right)c \, \mathbf{\hat{z}} & \left(6c\right) & \mbox{Cl} \\ \mathbf{B}_{8} & = & x_{2} \, \mathbf{a}_{1} + x_{2} \, \mathbf{a}_{2} + \left(\frac{1}{2} +z_{2}\right) \, \mathbf{a}_{3} & = & x_{2}a \, \mathbf{\hat{x}} + \left(\frac{1}{2} +z_{2}\right)c \, \mathbf{\hat{z}} & \left(6c\right) & \mbox{Cl} \\ \end{array} \]References
- J. M. Fletcher, W. E. Gardner, A. C. Fox, and G. Topping, X–Ray, infrared, and magnetic studies of α–and β–ruthenium trichloride, J. Chem. Soc. A pp. 1038–1045 (1967), doi:10.1039/J19670001038.
Found in
- P. Villars and K. Cenzual, Pearson's Crystal Data – Crystal Structure Database for Inorganic Compounds, ASM International (2013).
