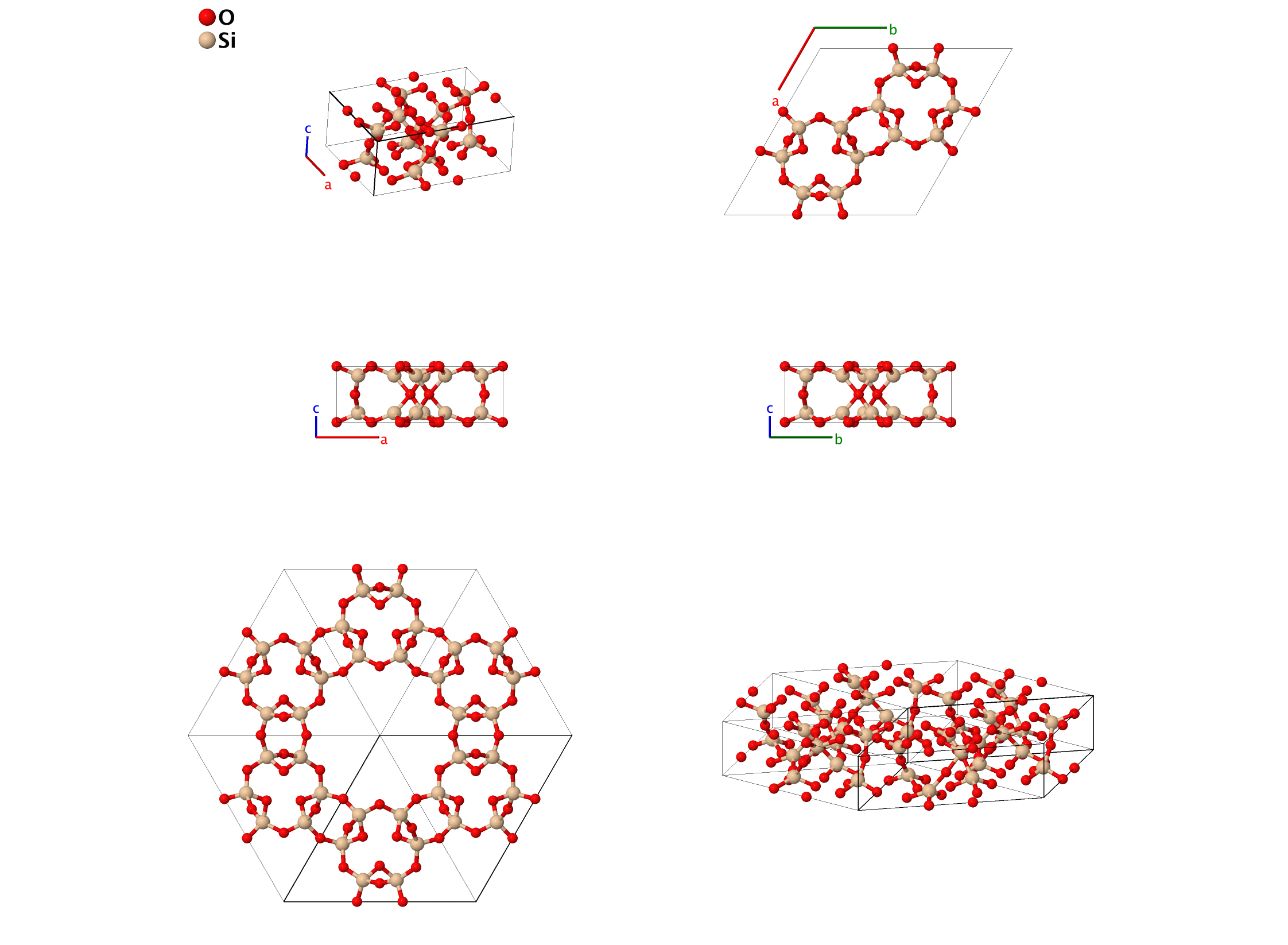

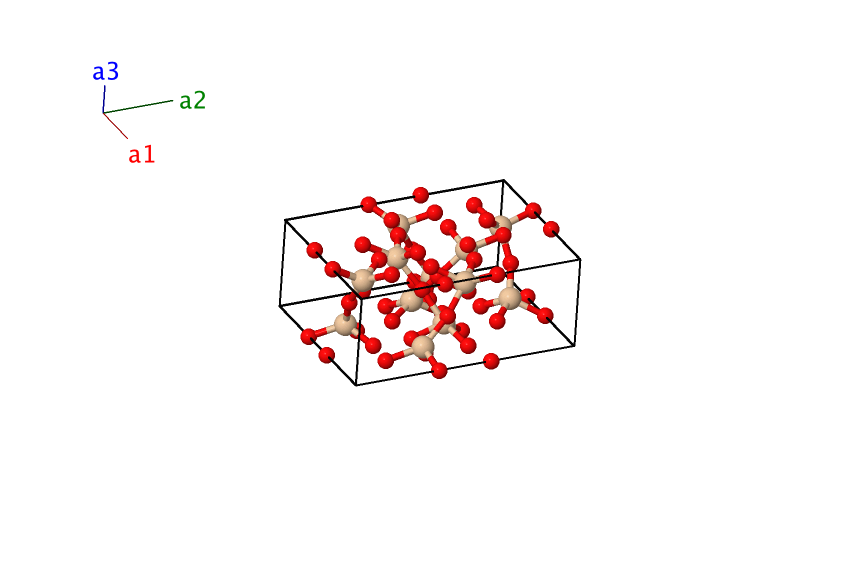

Library of Crystallographic Prototypes

Basis vectors:

\[ \begin{array}{ccccccc} & & \mbox{Lattice Coordinates} & & \mbox{Cartesian Coordinates} &\mbox{Wyckoff Position} & \mbox{Atom Type} \\ \mathbf{B}_{1} & = & x_{1} \, \mathbf{a}_{1} & = & \frac{1}{2}x_{1}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{1}a \, \mathbf{\hat{y}} & \left(6j\right) & \mbox{O I} \\ \mathbf{B}_{2} & = & x_{1} \, \mathbf{a}_{2} & = & \frac{1}{2}x_{1}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{1}a \, \mathbf{\hat{y}} & \left(6j\right) & \mbox{O I} \\ \mathbf{B}_{3} & = & -x_{1} \, \mathbf{a}_{1}-x_{1} \, \mathbf{a}_{2} & = & -x_{1}a \, \mathbf{\hat{x}} & \left(6j\right) & \mbox{O I} \\ \mathbf{B}_{4} & = & -x_{1} \, \mathbf{a}_{1} & = & -\frac{1}{2}x_{1}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{1}a \, \mathbf{\hat{y}} & \left(6j\right) & \mbox{O I} \\ \mathbf{B}_{5} & = & -x_{1} \, \mathbf{a}_{2} & = & -\frac{1}{2}x_{1}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{1}a \, \mathbf{\hat{y}} & \left(6j\right) & \mbox{O I} \\ \mathbf{B}_{6} & = & x_{1} \, \mathbf{a}_{1} + x_{1} \, \mathbf{a}_{2} & = & x_{1}a \, \mathbf{\hat{x}} & \left(6j\right) & \mbox{O I} \\ \mathbf{B}_{7} & = & x_{2} \, \mathbf{a}_{1}-x_{2} \, \mathbf{a}_{2} & = & -\sqrt{3}x_{2}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O II} \\ \mathbf{B}_{8} & = & x_{2} \, \mathbf{a}_{1} + 2x_{2} \, \mathbf{a}_{2} & = & \frac{3}{2}x_{2}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O II} \\ \mathbf{B}_{9} & = & -2x_{2} \, \mathbf{a}_{1}-x_{2} \, \mathbf{a}_{2} & = & -\frac{3}{2}x_{2}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O II} \\ \mathbf{B}_{10} & = & -x_{2} \, \mathbf{a}_{1} + x_{2} \, \mathbf{a}_{2} & = & \sqrt{3}x_{2}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O II} \\ \mathbf{B}_{11} & = & -x_{2} \, \mathbf{a}_{1}-2x_{2} \, \mathbf{a}_{2} & = & -\frac{3}{2}x_{2}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O II} \\ \mathbf{B}_{12} & = & 2x_{2} \, \mathbf{a}_{1} + x_{2} \, \mathbf{a}_{2} & = & \frac{3}{2}x_{2}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{2}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O II} \\ \mathbf{B}_{13} & = & x_{3} \, \mathbf{a}_{1}-x_{3} \, \mathbf{a}_{2} & = & -\sqrt{3}x_{3}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O III} \\ \mathbf{B}_{14} & = & x_{3} \, \mathbf{a}_{1} + 2x_{3} \, \mathbf{a}_{2} & = & \frac{3}{2}x_{3}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{3}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O III} \\ \mathbf{B}_{15} & = & -2x_{3} \, \mathbf{a}_{1}-x_{3} \, \mathbf{a}_{2} & = & -\frac{3}{2}x_{3}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{3}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O III} \\ \mathbf{B}_{16} & = & -x_{3} \, \mathbf{a}_{1} + x_{3} \, \mathbf{a}_{2} & = & \sqrt{3}x_{3}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O III} \\ \mathbf{B}_{17} & = & -x_{3} \, \mathbf{a}_{1}-2x_{3} \, \mathbf{a}_{2} & = & -\frac{3}{2}x_{3}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{3}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O III} \\ \mathbf{B}_{18} & = & 2x_{3} \, \mathbf{a}_{1} + x_{3} \, \mathbf{a}_{2} & = & \frac{3}{2}x_{3}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{3}a \, \mathbf{\hat{y}} & \left(6l\right) & \mbox{O III} \\ \mathbf{B}_{19} & = & x_{4} \, \mathbf{a}_{1}-x_{4} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & -\sqrt{3}x_{4}a \, \mathbf{\hat{y}} + \frac{1}{2}c \, \mathbf{\hat{z}} & \left(6m\right) & \mbox{O IV} \\ \mathbf{B}_{20} & = & x_{4} \, \mathbf{a}_{1} + 2x_{4} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & \frac{3}{2}x_{4}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{4}a \, \mathbf{\hat{y}} + \frac{1}{2}c \, \mathbf{\hat{z}} & \left(6m\right) & \mbox{O IV} \\ \mathbf{B}_{21} & = & -2x_{4} \, \mathbf{a}_{1}-x_{4} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & -\frac{3}{2}x_{4}a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{4}a \, \mathbf{\hat{y}} + \frac{1}{2}c \, \mathbf{\hat{z}} & \left(6m\right) & \mbox{O IV} \\ \mathbf{B}_{22} & = & -x_{4} \, \mathbf{a}_{1} + x_{4} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & \sqrt{3}x_{4}a \, \mathbf{\hat{y}} + \frac{1}{2}c \, \mathbf{\hat{z}} & \left(6m\right) & \mbox{O IV} \\ \mathbf{B}_{23} & = & -x_{4} \, \mathbf{a}_{1}-2x_{4} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & -\frac{3}{2}x_{4}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{4}a \, \mathbf{\hat{y}} + \frac{1}{2}c \, \mathbf{\hat{z}} & \left(6m\right) & \mbox{O IV} \\ \mathbf{B}_{24} & = & 2x_{4} \, \mathbf{a}_{1} + x_{4} \, \mathbf{a}_{2} + \frac{1}{2} \, \mathbf{a}_{3} & = & \frac{3}{2}x_{4}a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{4}a \, \mathbf{\hat{y}} + \frac{1}{2}c \, \mathbf{\hat{z}} & \left(6m\right) & \mbox{O IV} \\ \mathbf{B}_{25} & = & x_{5} \, \mathbf{a}_{1} + y_{5} \, \mathbf{a}_{2} + z_{5} \, \mathbf{a}_{3} & = & \frac{1}{2}\left(x_{5}+y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}\left(-x_{5}+y_{5}\right)a \, \mathbf{\hat{y}} + z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{26} & = & -y_{5} \, \mathbf{a}_{1} + \left(x_{5}-y_{5}\right) \, \mathbf{a}_{2} + z_{5} \, \mathbf{a}_{3} & = & \left(\frac{1}{2}x_{5}-y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{5}a \, \mathbf{\hat{y}} + z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{27} & = & \left(-x_{5}+y_{5}\right) \, \mathbf{a}_{1}-x_{5} \, \mathbf{a}_{2} + z_{5} \, \mathbf{a}_{3} & = & \left(-x_{5}+\frac{1}{2}y_{5}\right)a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}y_{5}a \, \mathbf{\hat{y}} + z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{28} & = & -x_{5} \, \mathbf{a}_{1}-y_{5} \, \mathbf{a}_{2} + z_{5} \, \mathbf{a}_{3} & = & -\frac{1}{2}\left(x_{5}+y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}\left(x_{5}-y_{5}\right)a \, \mathbf{\hat{y}} + z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{29} & = & y_{5} \, \mathbf{a}_{1} + \left(-x_{5}+y_{5}\right) \, \mathbf{a}_{2} + z_{5} \, \mathbf{a}_{3} & = & \left(-\frac{1}{2}x_{5}+y_{5}\right)a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{5}a \, \mathbf{\hat{y}} + z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{30} & = & \left(x_{5}-y_{5}\right) \, \mathbf{a}_{1} + x_{5} \, \mathbf{a}_{2} + z_{5} \, \mathbf{a}_{3} & = & \left(x_{5}-\frac{1}{2}y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}y_{5}a \, \mathbf{\hat{y}} + z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{31} & = & y_{5} \, \mathbf{a}_{1} + x_{5} \, \mathbf{a}_{2}-z_{5} \, \mathbf{a}_{3} & = & \frac{1}{2}\left(x_{5}+y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}\left(x_{5}-y_{5}\right)a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{32} & = & \left(x_{5}-y_{5}\right) \, \mathbf{a}_{1}-y_{5} \, \mathbf{a}_{2}-z_{5} \, \mathbf{a}_{3} & = & \left(\frac{1}{2}x_{5}-y_{5}\right)a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}x_{5}a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{33} & = & -x_{5} \, \mathbf{a}_{1} + \left(-x_{5}+y_{5}\right) \, \mathbf{a}_{2}-z_{5} \, \mathbf{a}_{3} & = & \left(-x_{5}+\frac{1}{2}y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}y_{5}a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{34} & = & -y_{5} \, \mathbf{a}_{1}-x_{5} \, \mathbf{a}_{2}-z_{5} \, \mathbf{a}_{3} & = & -\frac{1}{2}\left(x_{5}+y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}\left(-x_{5}+y_{5}\right)a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{35} & = & \left(-x_{5}+y_{5}\right) \, \mathbf{a}_{1} + y_{5} \, \mathbf{a}_{2}-z_{5} \, \mathbf{a}_{3} & = & \left(-\frac{1}{2}x_{5}+y_{5}\right)a \, \mathbf{\hat{x}} + \frac{\sqrt{3}}{2}x_{5}a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \mathbf{B}_{36} & = & x_{5} \, \mathbf{a}_{1} + \left(x_{5}-y_{5}\right) \, \mathbf{a}_{2}-z_{5} \, \mathbf{a}_{3} & = & \left(x_{5}-\frac{1}{2}y_{5}\right)a \, \mathbf{\hat{x}}-\frac{\sqrt{3}}{2}y_{5}a \, \mathbf{\hat{y}}-z_{5}c \, \mathbf{\hat{z}} & \left(12n\right) & \mbox{Si} \\ \end{array} \]
